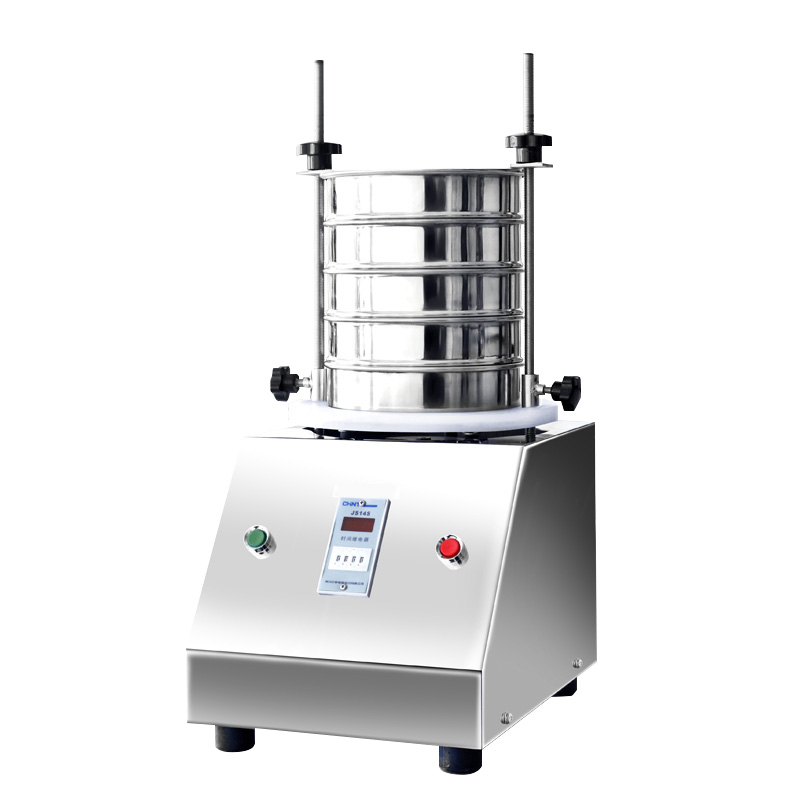

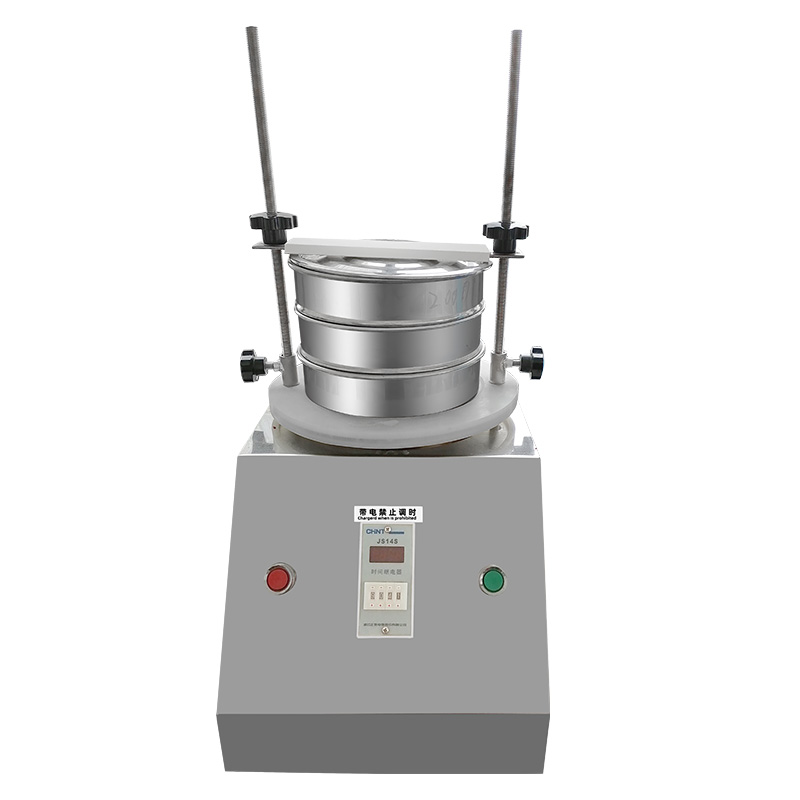

Standard inspection screen is a kind of laboratory screening machine, also known as test screen, sample screen and analysis screen. It is mainly used in university laboratories, research institutes or laboratories in some companies. It is different from the general vibrating screen. It has national standards. The standard inspection screen machine and the standard inspection screen frame have certain standard restrictions.
Working Principle
The high-frequency electric oscillation generated by the vibration power supply of the inspection screen is converted into high-frequency sinusoidal oscillation wave by the oscillator, which evenly transmits the oscillation wave to the screen surface. The materials on the screen are doing low-frequency three-dimensional vibration to screen materials with different particle sizes through vibration.
Product Features
1. High efficiency, exquisite and durable design, any powder and liquid can be screened.
2. Small size, no space, easy to move.
3. The screen machine can place 5 layers of standard screen (including screen bottom), and can accurately separate a kind of granular material into 2 ~ 6 particle segments at the same time.
4. Timed automatic shutdown
5. Ensure the repeatability of the experiment, complete functions and simpler operation
6. Low noise and light weight;
7. Platform operation without fixing.

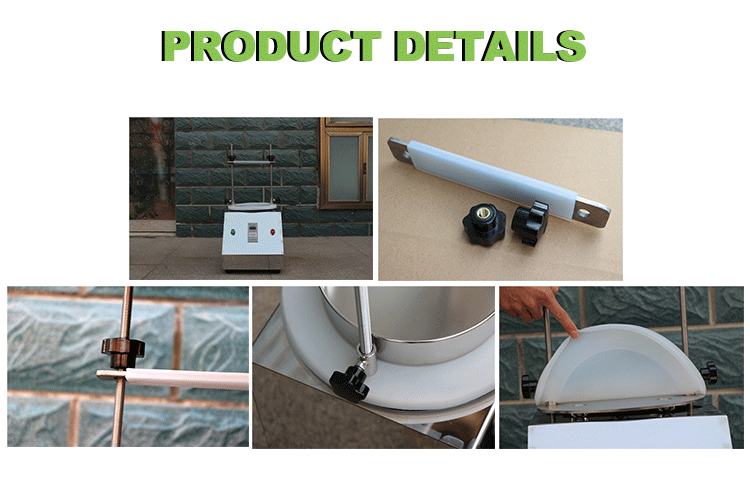

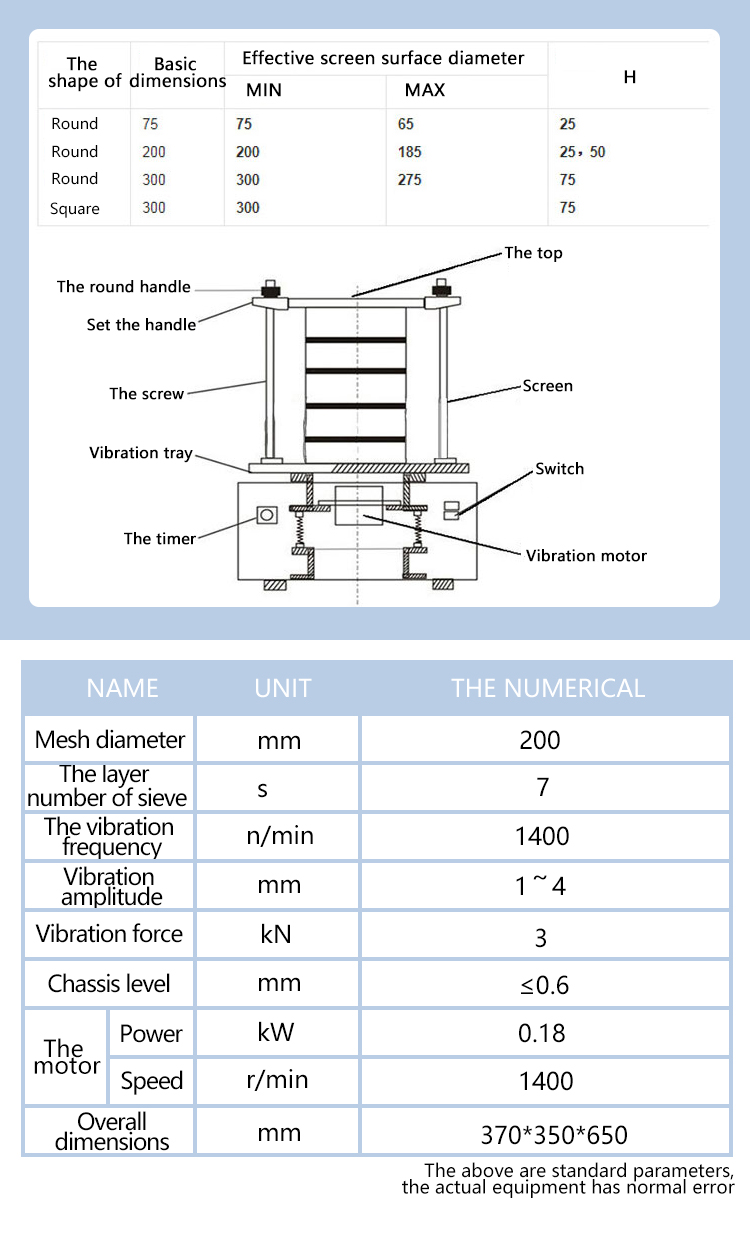

Equipment Details
